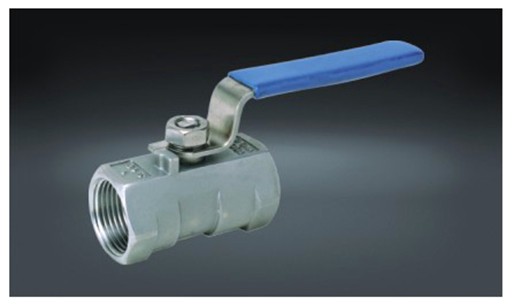

一片式内螺纹球阀
|
| 阅读数：5438 留言数：0
发布时间：2013/11/14 15:39:04 |
|

|

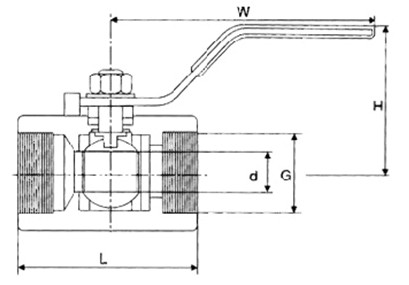

Q11F主要外形尺寸 |
|
DN |
G |
d |
L |
H |
W |
|
6 |
1/4" |
5 |
40 |
28 |
70 |
|
10 |
3/8" |
7 |
45 |
30 |
70 |
|
15 |
1/2" |
9 |
56 |
34 |
90 |
|
20 |
3/4" |
12 |
60 |
38 |
90 |
|
25 |
1" |
15 |
70 |
50 |
110 |
|
32 |
11/4" |
20 |
80 |
56 |
120 |
|
40 |
11/2" |
25 |
85 |
60 |
130 |
|
50 |
2" |
32 |
100 |
65 |
140 |
|
65 |
21/2" |
38 |
118 |
72 |
180 |
|

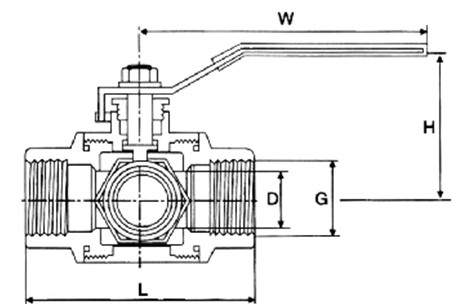

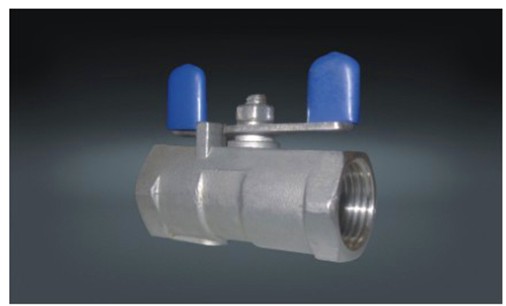

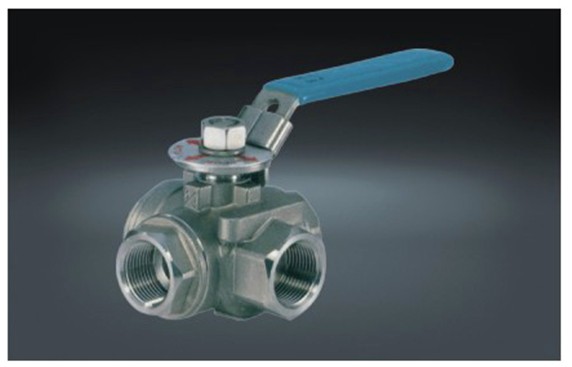

Q14/15F主要外形尺寸 |
|
DN |
G |
L |
d |
H |
W |
|
6 |
1/4" |
70 |
12 |
58 |
110 |
|
10 |
3/8" |
70 |
12 |
58 |
110 |
|
15 |
1/2" |
70 |
12 |
58 |
110 |
|
20 |
3/4" |
83 |
14 |
60 |
120 |
|
25 |
1" |
90 |
18 |
70 |
140 |
|
32 |
11/4" |
125 |
25 |
82 |
140 |
|
40 |
11/2" |
138 |
32 |
95 |
180 |
|
50 |
2" |
155 |
38 |
100 |
200 | |
|
|
|
|
|
