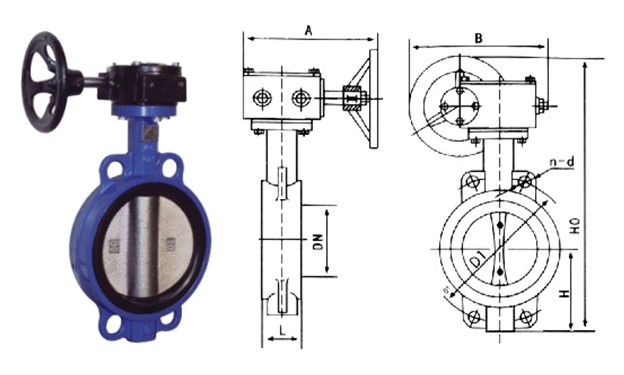

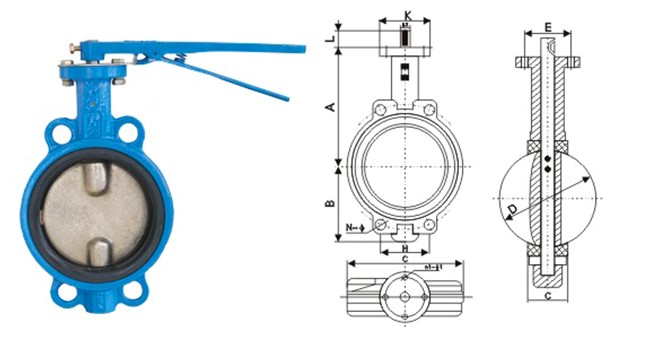

GTD(3)71X/J系列手动、涡轮传动对夹式软密封蝶阀
|
| 阅读数：5034 留言数：0
发布时间：2013/11/13 11:23:28 |
|
|
公称通径 |
结构长度 |
外形尺寸（参考值） |
连接尺寸（标准值） |

|
0.6MPa |
1.0MPa |
1.6MPa |
|
毫米mm |
英寸inch |
L |
H |
H1 |
A |
B |
D1 |
n-Ød |
D1 |
n-Ød |
D1 |
n-Ød |
|
50 |
2 |
43 |
63 |
306 |
180 |
200 |
110 |
4-Ø14 |
125 |
4-Ø18 |
125 |
4-Ø18 |
|
65 |
22/1 |
46 |
70 |
321 |
180 |
200 |
130 |
4-Ø14 |
145 |
4-Ø18 |
145 |
4-Ø18 |
|
80 |
3 |
46 |
83 |
346 |
180 |
200 |
150 |
4-Ø18 |
160 |
8-Ø18 |
160 |
8-Ø18 |
|
100 |
4 |
52 |
105 |
387 |
180 |
200 |
170 |
4-Ø18 |
180 |
8-Ø18 |
180 |
8-Ø18 |
|
125 |
5 |
56 |
115 |
411 |
180 |
200 |
200 |
8-Ø18 |
210 |
8-Ø18 |
210 |
8-Ø18 |
|
150 |
6 |
56 |
137 |
447 |
270 |
280 |
225 |
8-Ø18 |
240 |
8-Ø22 |
240 |
8-Ø22 |
|
200 |
8 |
60 |
164 |
572 |
270 |
280 |
280 |
8-Ø18 |
295 |
8-Ø22 |
295 |
12-Ø22 |
|
250 |
10 |
68 |
206 |
646 |
270 |
280 |
335 |
12-Ø18 |
350 |
12-Ø22 |
355 |
12-Ø26 |
|
300 |
12 |
78 |
230 |
738 |
380 |
420 |
395 |
12-Ø22 |
400 |
12-Ø22 |
410 |
12-Ø26 |
|
350 |
14 |
78 |
248 |
761 |
380 |
420 |
445 |
12-Ø22 |
460 |
16-Ø22 |
470 |
16-Ø26 |
|
400 |
16 |
102 |
289 |
877 |
450 |
470 |
495 |
16-Ø22 |
515 |
16-Ø26 |
525 |
16-Ø30 |
|
450 |
18 |
114 |
320 |
938 |
480 |
490 |
550 |
16-Ø22 |
565 |
20-Ø26 |
585 |
20-Ø30 |
|
500 |
20 |
127 |
343 |
993 |
480 |
490 |
600 |
20-Ø22 |
620 |
20-Ø26 |
650 |
20-Ø33 |
|
600 |
24 |
154 |
413 |
1131 |
480 |
490 |
705 |
20-Ø26 |
725 |
20-Ø30 |
770 |
20-Ø36 |
|
700 |
28 |
165 |
478 |
1476 |
640 |
660 |
810 |
24-Ø26 |
840 |
24-Ø30 |
840 |
24-Ø36 |
|
800 |
32 |
190 |
525 |
1533 |
640 |
660 |
920 |
24-Ø30 |
950 |
24-Ø33 |
950 |
24-Ø39 |
|
900 |
36 |
203 |
585 |
1655 |
750 |
860 |
1020 |
24-Ø30 |
1050 |
28-Ø33 |
1050 |
28-Ø39 |
|
1000 |
40 |
216 |
640 |
1765 |
850 |
900 |
1120 |
28-Ø30 |
1160 |
28-Ø36 |
1170 |
28-Ø42 |
|
1200 |
48 |
254 |
755 |
1995 |
850 |
900 |
1340 |
32-Ø33 |
1380 |
32-Ø39 |
1390 |
32-Ø48 |
|
1400 |
56 |
279 |
910 |
2310 |
1000 |
925 |
1560 |
36-Ø36 |
1590 |
36-Ø42 |
1590 |
36-Ø48 |
|
1600 |
64 |
318 |
1030 |
2595 |
1000 |
925 |
1760 |
40-Ø36 |
1820 |
40-Ø48 |
1820 |
40-Ø55 |
|
1800 |
72 |
356 |
1140 |
2810 |
1100 |
980 |
1970 |
44-Ø39 |
2020 |
44-Ø48 |
2020 |
44-Ø55 |
|
200 |
80 |
406 |
1250 |
3100 |
1100 |
980 |
2180 |
48-Ø42 |
2230 |
48-Ø48 |
2230 |
48-Ø60 | |
|
|
|
|
|
